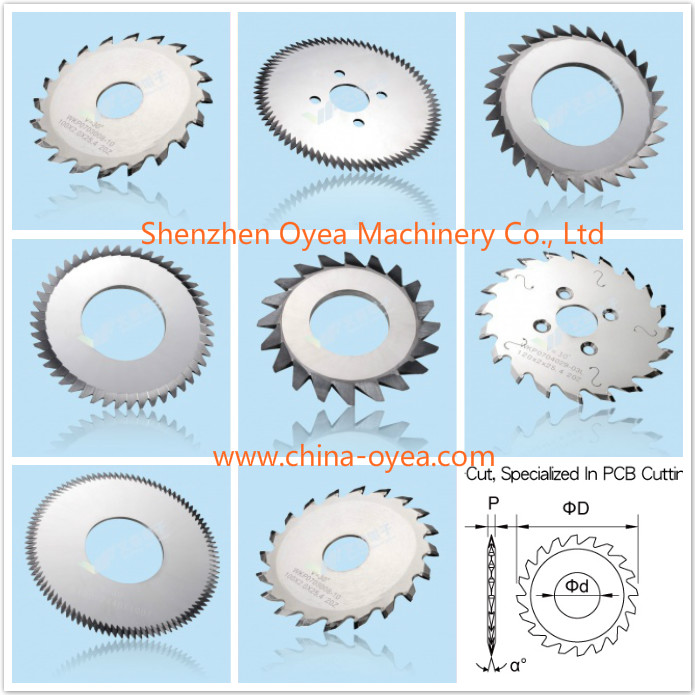

Saw Blade for V-Cutting PCB

Saw Blade for V-Cutting PCB are designed for the PCB industry, It is used for cutting the PCB board. We supply tungsten carbide v-scoring blades, the very highest quality carbide cutters available ensuring precision scoring and at low cost. Carbide V-scoring are specially made for PCB V-grooving, V-  slotting,V-scoring, V cut.

Application:For Cutting 4~6 layers of PBC.
Material::Whole Carbide, ISO K10.
Characteristic:superior cutting effect,no deckle edge, fine surface
The material of PCB Board:
Paper Substrate: FR-1, FR-2, FR-3
Epoxy Glass Cloth Substrate: FR-4, FR-5
Composite Substrate: CEM-1, CEM-3

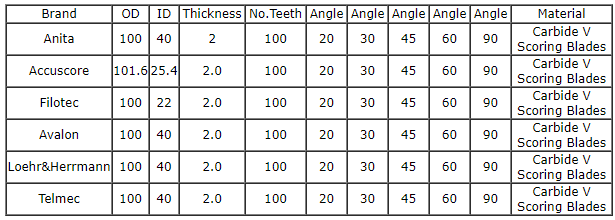

Carbide Blades for Accuscore:

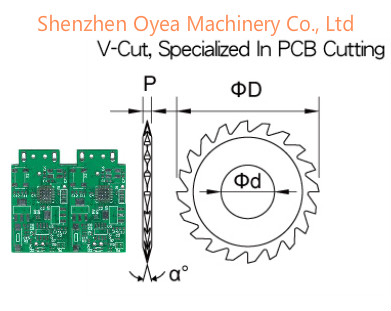

Diameter     Kerf   Bore       Z           Tooth Style
101.6mm (4") 2.0mm 25.4mm (1") 100    90/60/45/30/20degree
Diamond Blades for Accuscore:
Diameter      Kerf   Bore      Z    Tooth Style
101.6mm (4") 2.0mm 25.4mm (1") 24   60/45/30 degree
Carbide Blades for Anita:
Diameter Kerf Bore Z Tooth Style
100mm 2.0mm 40mm 100 90/60/45/30/20 degree
Diamond Blades for Anita:
Diameter Kerf Bore Z Tooth Style
100mm 2.0mm 40mm 24 60/30 degree
Carbide Blades for Avalon:
Diameter Kerf Bore Z Tooth Style
100mm 2.0mm 40mm 100 90/60/30/20 degree
Diamond Blades for Avalon:
Diameter Kerf Bore Z Tooth Style
100mm 2.0mm 40mm 24 60/30 degree
Carbide Blades for Filotec:
Diameter Kerf Bore  Z       Tooth Style
 100mm  2.0mm 22mm 100  90/60/45/30/20 degree
Diamond Blades for Filotec:
Diameter Kerf Bore  Z   Tooth Style
1 00mm  2.0mm 22mm  24  45/30 degree
Carbide Blades for Lohr & Herman:
Diameter Kerf  Bore  Z      Tooth Style
 100mm  2.0mm  40mm 100  90/60/45/30/20 degree
Diamond Blades for Lohr & Herman:
Diameter Kerf Bore Z    Tooth Style
 100mm  2.0mm 40mm 24  60/30 degree
Carbide Blades for Telmec:
Diameter Kerf  Bore  Z       Tooth Style
 100mm   2.0mm 40mm 100  90/60/45/30/20 degree
Diamond Blades for Telmec:
Diameter Kerf  Bore   Z    Tooth Style
 100mm   2.0mm 40mm  24   60/
30 degree
If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email:  info@china-oyea.com
             1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product.
Contact with us ,you will get more than what you can !
