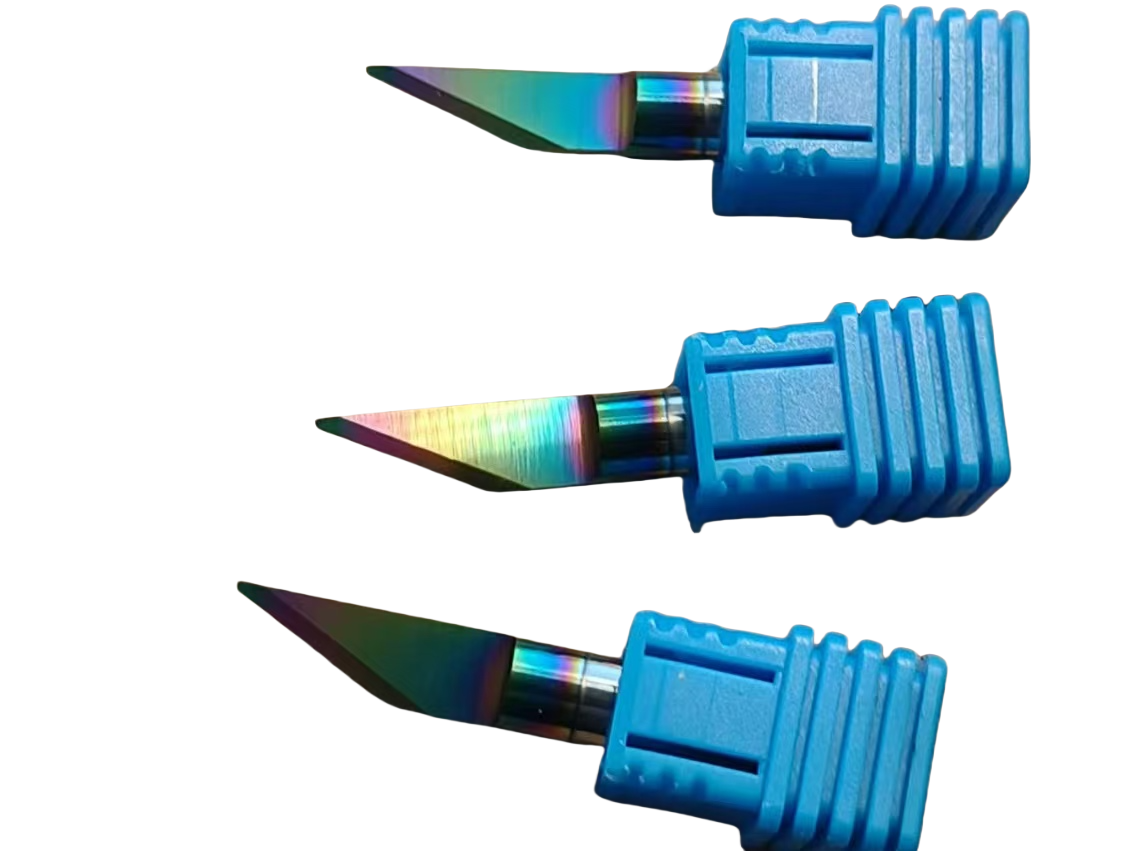

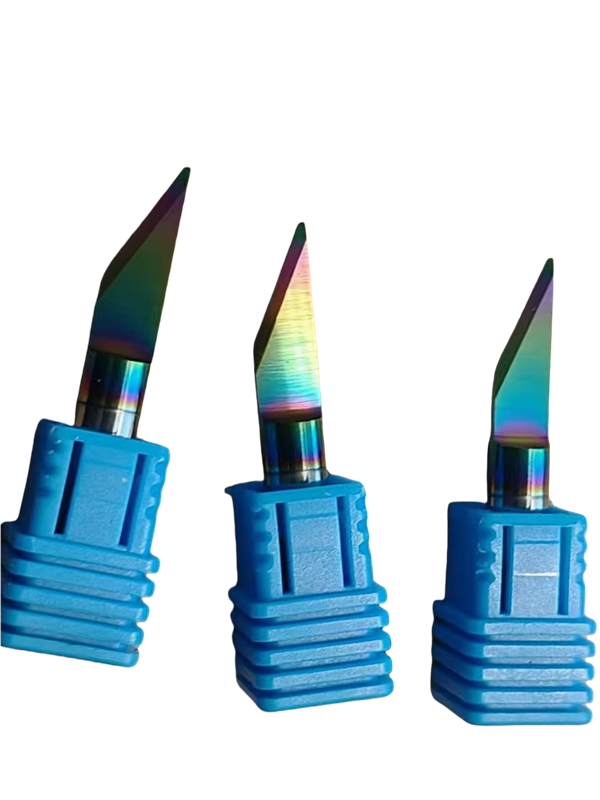

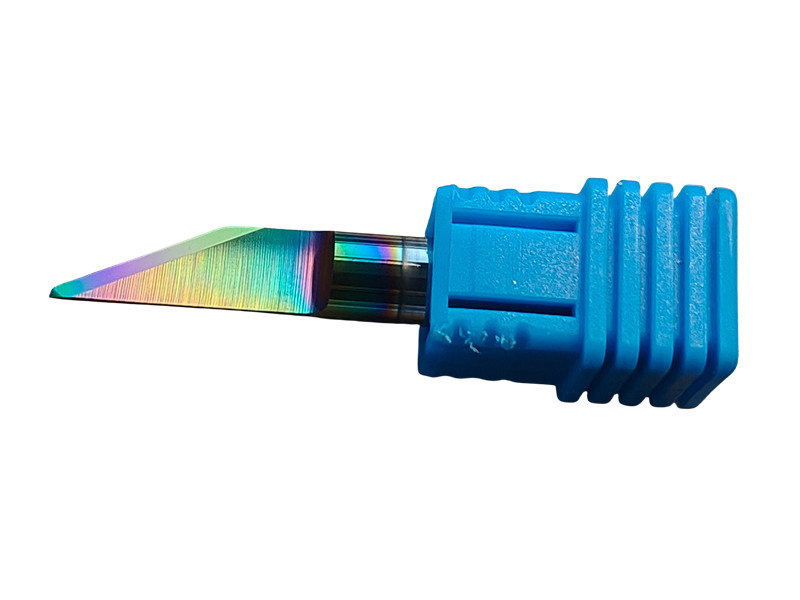

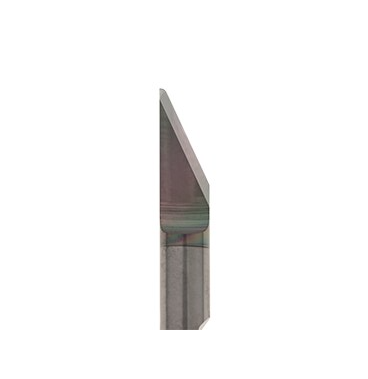

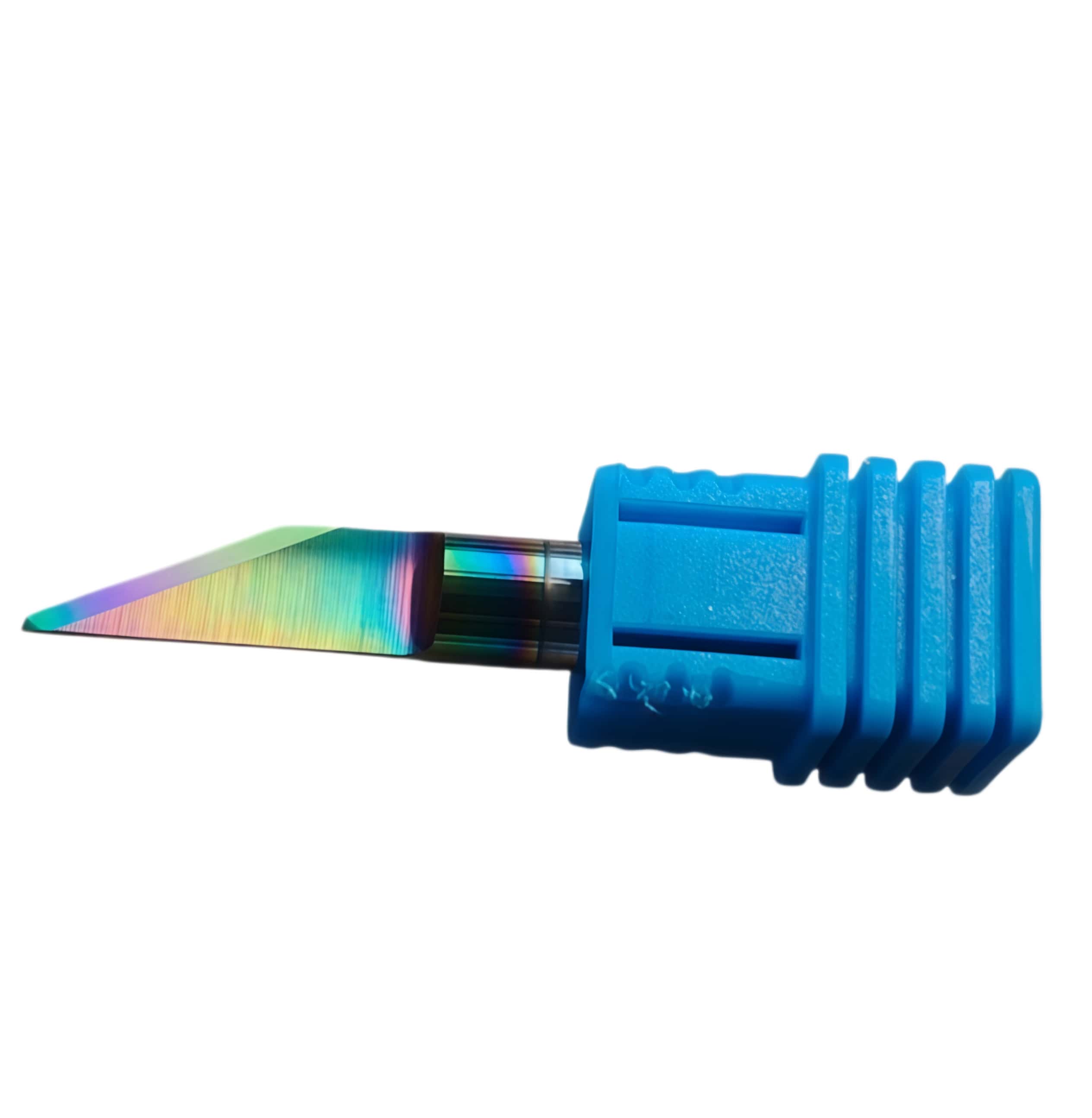

Esko Kongsberg Bld-Sr6224 C2 Digital Cutting Tables Tungsten Steel Coating Knife Blades–Replacement

The Esko Kongsberg BLD-SR6224 (G42475780) is an industrial tungsten carbide / tungsten steel coated oscillating blade designed for high-performance CNC flatbed cutting tables. Enquire now

Description

Esko Kongsberg Bld-Sr6224 C2 Digital Cutting Tables Tungsten Steel Coating Knife Blades–Replacement G42475780

Esko Kongsberg BLD-SR6224 C2(Part Number: G42475780 ) is a high-performance, long-life vibrating cutter blade designed specifically for Kongsberg digital cutters. It is made of premium tungsten steel (carbide) and features an advanced C2/DLC low-friction coating.

Core Technical Parameters

Blade model: BLD-SR6224 C2
Official ID: G42475780

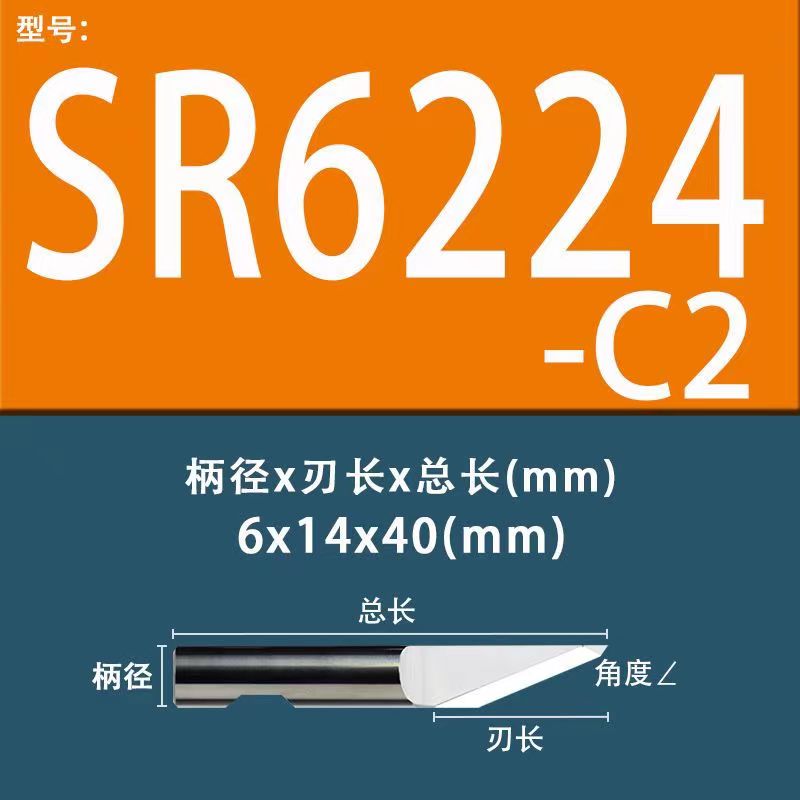

Handle diameter: 6 mm (round shank)
Maximum cutting thickness: 12 mm (1/2 inch)
Material properties: Tungsten carbide, with a hardness reaching HRA 89~92.5.
Surface coating: C2/DLC (diamond-like carbon) anti-friction coating

Core advantages of the coated version (C2)

Ultra-low friction: Compared to ordinary uncoated inserts (such as G42438135), the C2 coating can reduce cutting resistance by up to 60% .
Extended lifespan: Wear resistance is significantly improved, and the service life is typically 6 times that of standard tungsten carbide blades .
Perfect cross-section: Optimized for high-frequency vibration or traditional reciprocating cutting tools, it effectively reduces material snagging and stretching , resulting in cleaner cuts.

Description

Long-life C2 coated knife blade, works well with most grades of corrugated board. Used in reciprocating knife tools. Better properties for recycled board than VHM 24-023. Tungsten carbide steel. Length / edge angle: 38.9mm (1.531”) / 24º Note: Cylindrical shaft, needs special blade adapter (part no. 97AR378) C2 coated for longer life

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
