Zund Z1 Drag Knife Blade, Round-Stock 3910105
CHINA XZ0001 BT-21401 Zund Z1 Drag Knife Blade, Round-Stock 3910105 Nóż z powrotem Messerklingen Лезвия ножа Lames de couteau 나이프 블레이드 Čepele nožov Rezila nožev ใบมีด Леза ножа Hojas de cuchillo Kés pengék Lame di coltello Lưỡi dao Bıçak Bıçakları 切割机钨钢刀片 Me…Max. cutting depth: 1 mm, 35°/ Drag blade…
Enquire now

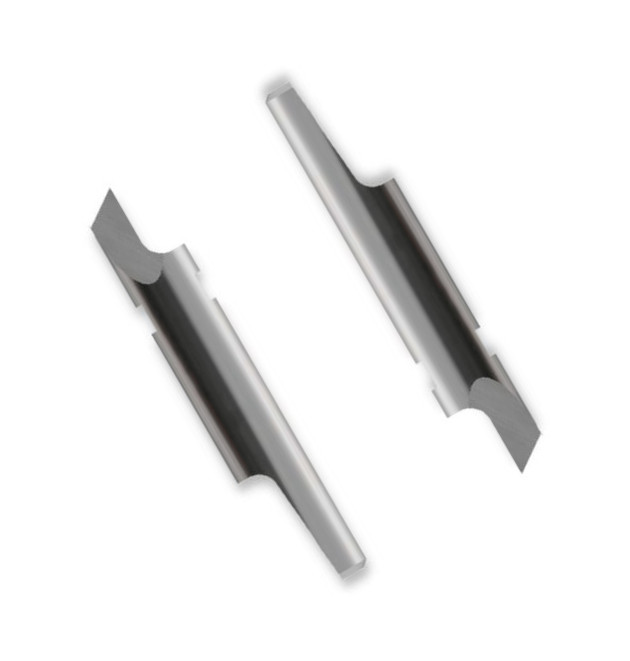

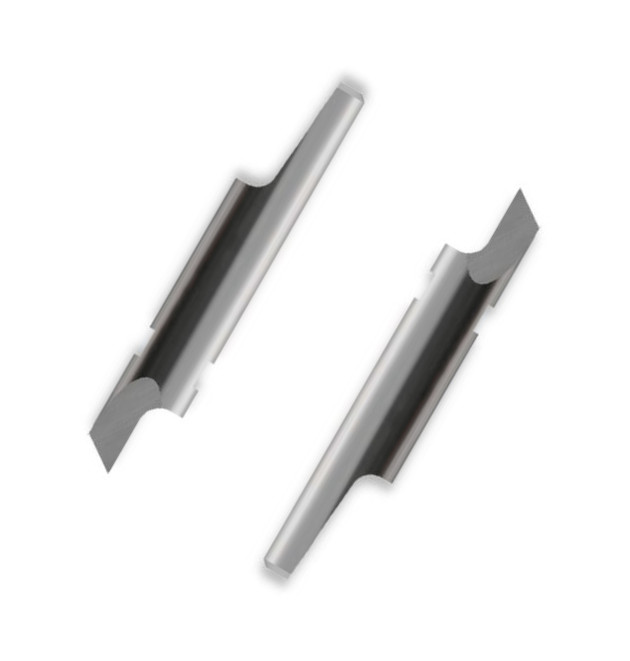

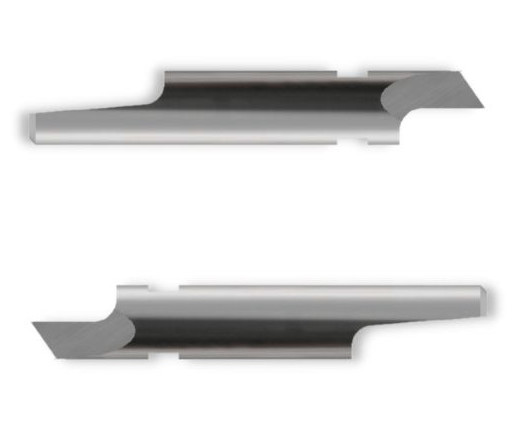

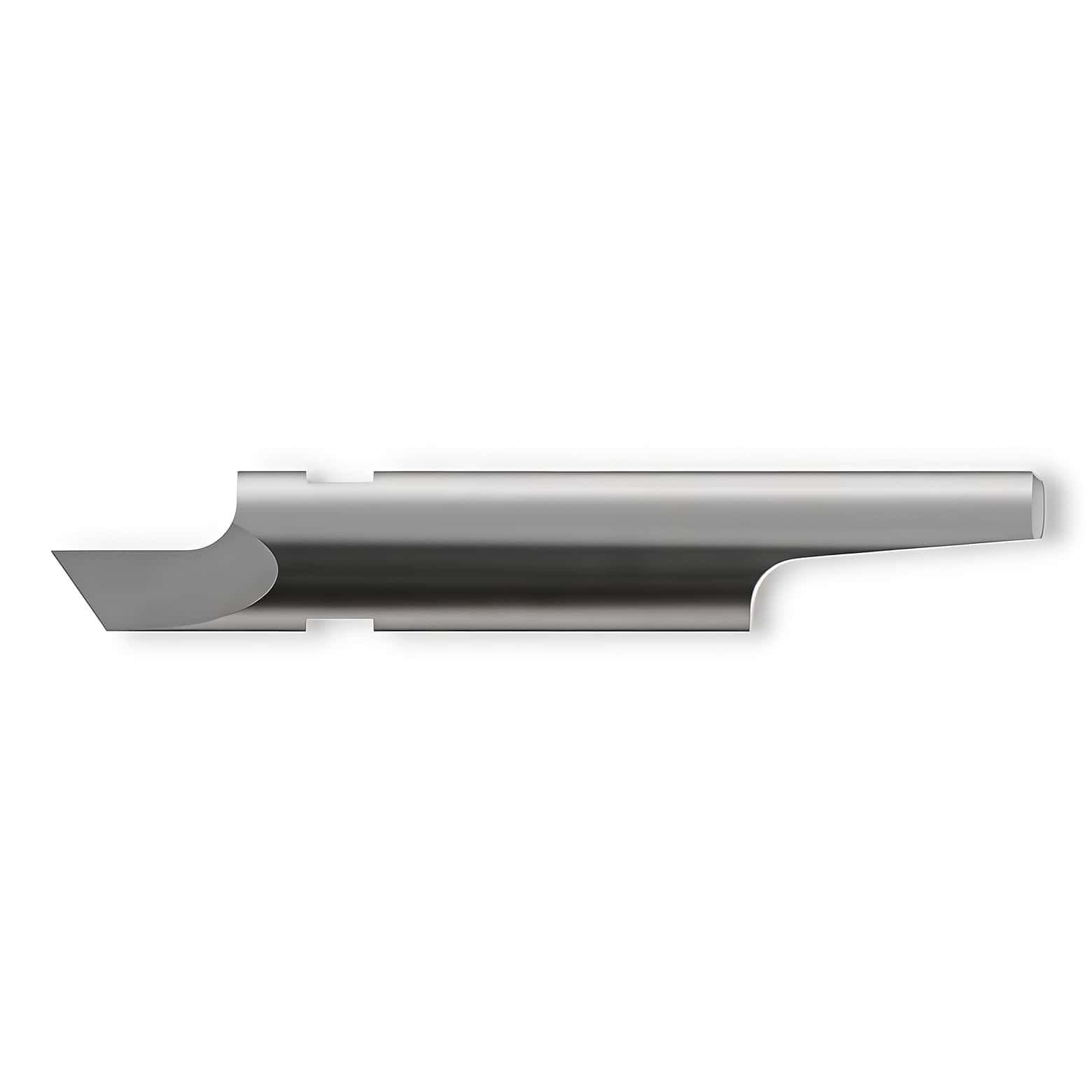

Zund Z1 Drag blade, round-stock (3910105)
*** Zund Punching Tools
*** Zund Conveyor belts/Cutting Underlay
High quality blade in solid tungsten carbide for application in Zünd digital cutters. The blade has extreme durability, and a cutting depth of 1mm. Equivalent to Zünd's blade with part number 3910105.
Suitable for:
Magnetic foil
Masking film
Polycarbonate
Cardstock

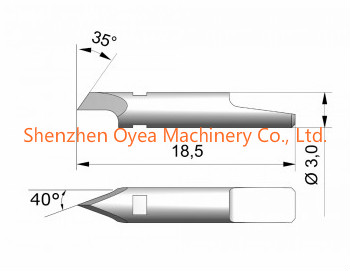

Dimensions:
18.5mm long
3mm in diameter thick
1mm maximum cutting depth
Pre-cut:
1.43 x TM
Application:
Applied in Zund Kiss-cut Tool (KCT) with Insert Sleeve 40 for vinyl blades
Or in Zund C2 / C2P
Or in Zund Kiss-cut Module (KCM- S)
Replacement for:
Zund Z1,Jwei J301,Esko Kongsberg Bld-Kc101,Iecho E1,Blackman & White Bw Kiss Cut 1,Bullmer 069720 B1,CutWorx CWT j301 Cutworx Apex CWX/CWT E1
Suitable for:
Magnetic foil
Masking film
Polycarbonate
Cardstock
Dimensions:
18.5mm long
3mm in diameter thick
1mm maximum cutting depth
Pre-cut:
1.43 x TM
Application:
Applied in Zund Kiss-cut Tool (KCT) with Insert Sleeve 40 for vinyl blades
Or in Zund C2 / C2P
Or in Zund Kiss-cut Module (KCM- S)
Replacement for:
Zund Z1,Jwei J301,Esko Kongsberg Bld-Kc101,Iecho E1,Blackman & White Bw Kiss Cut 1,Bullmer 069720 B1,CutWorx CWT j301 Cutworx Apex CWX/CWT E1
If you have more questions to know,please contact us.
Tel: +86-0769-88014625
Phone Number: +86- 18823852826
Email: info@china-oyea.com
1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product. Contact with us ,you will get more than what you can !
