The power does not turn on.

The machine is not connected to the power outlet by the power cable.

Insert the power plug securely into the power outlet

The power cable provided is not being used.

Use the power cable provided.

The power is not turned on.

Turn the power on.

Cutting (printing) is not possible.

Parameters such as the plotter name are incorrectly set in the application.

Check the application settings.

The interface cable is not correctly connected.

Connect the interface cable correctly.

The USB driver has not been installed.

Install the USB driver using the FineCut/Coat9 installer.

Unidentified cause.

Cut a sample stored in the machine to identify the cause. Executing a sample cut will clear any data saved in the receive buffer

An error occurs when data is sent from the computer.

The command is incorrectly set

Adjust the command settings between the application and plotter.

The plotter model is incorrectly set in the application.

Set the plotter model to [CG-AR] in the application.

Sheet detection is not possible.

A transparent sheet or sheet with black underside is being used.

Disable the sheet sensor function.

Cutting forms a broken line.

The tool holder knob is loose.

Retighten the knob on the tool holder.

The cutting blade is protruding too far.

Adjust the cutting blade protrusion appropriately.

Half cut is enabled.

Disable half cut in the tool conditions.

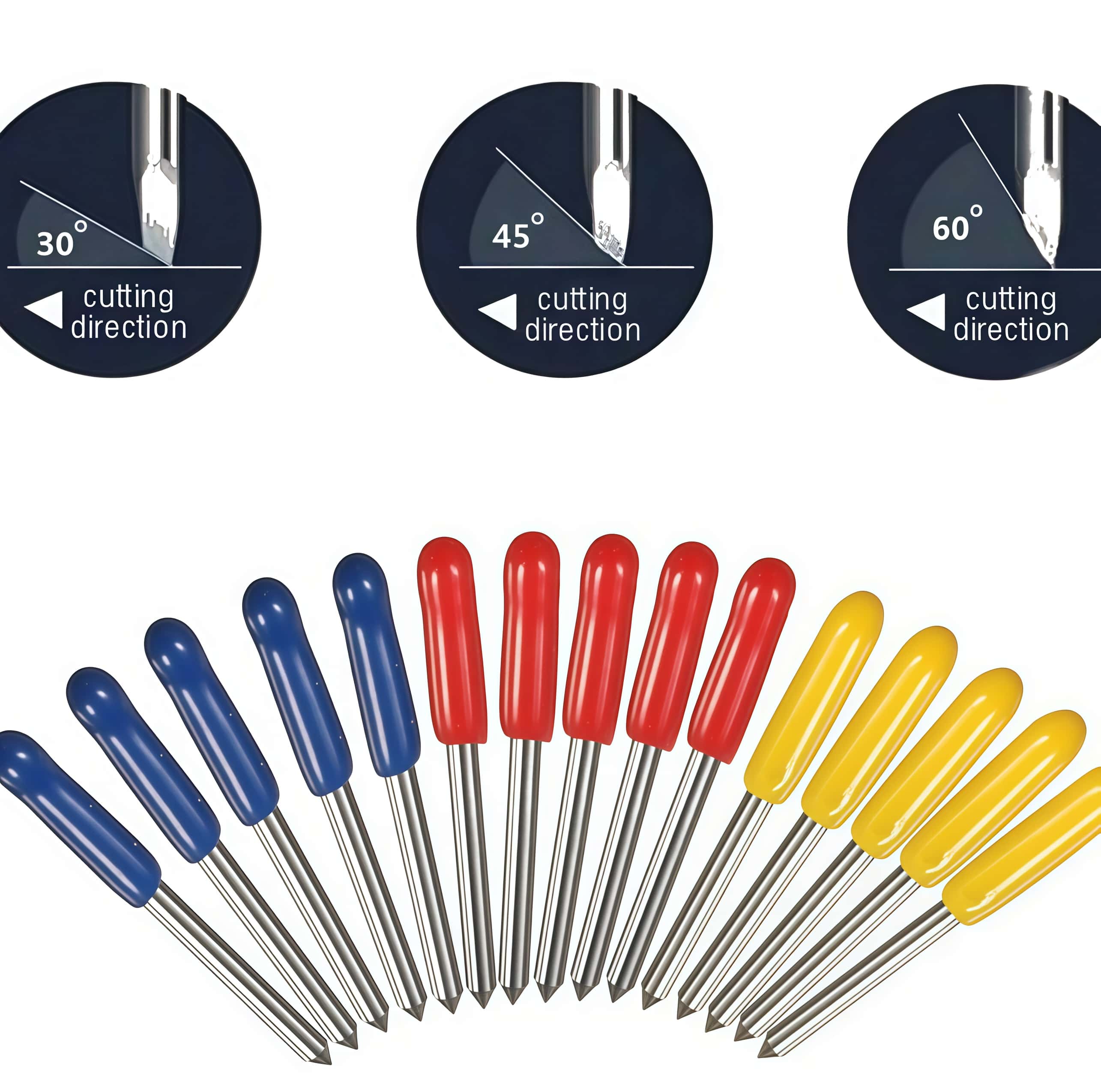

The cutting blade is chipped or worn.

Replace with a new cutter.

The cutting blade does not rotate smoothly.

Replace with a new holder.

The cut length differs from the data length.

The sheet feed length changes depending on the sheet thickness.

Perform distance correction to correct the discrepancy.

Offset occurs during cutting.

The pinch rollers and grit rollers are not gripping the sheet firmly.

Check the pinch roller and grit roller positions to ensure that the sheet is gripped securely.

The clamping force (High/Low mode) has not been correctly selected.

Select the correct clamping force.

The roll sheet is loosely wound with slack present, causing the sheet to meander or become skewed when fed.

When loading the roll sheet, adjust the roll slack and parallel of the roll edges before feeding the sheet.

The sheet is folded, detached from the backing sheet, with air bubbles trapped inside.

Take care to ensure that the sheet does not become folded and is not subjected to any load during sheet feeding or cutting when cutting long data.

Allow sufficient work space in the sheet feed direction when cutting long data. (At least 1.5 m at both front and rear)

The sheet loading direction (front or rear) does not match the data output direction.

Make sure the directions match.

The sheet touches the floor.

Reduce the cutting speed (SPEED) to reduce the load when the sheet touches the floor.

The side margins for the pinch rollers are insufficient.

Allow side margins of at least 20 mm for the pinch rollers.

The cutting position is offset when cutting using register marks.

There is a problem with the register marks.

Perform the operation used to check the responsiveness of the register mark sensor.

The cutter and register mark sensor offset values may be offset.

Adjust the register mark sensor positions.

The tool is dragged during operation and excessive cutter marks remain on the sheet.

The sheet is warped.

Load the sheet to prevent it from warping.

A curled sheet is being used.

Do not use curled sheets or sheets with folded ends.

The sheet has ripples/surface irregularities or is lifting up.

If you are using roll sheet, use a smooth section of the sheet for initial feeding.

Tool raising/lowering is faulty.

Turn off the power, then check to confirm whether the tool holder can be raised/lowered manually.
If the tool holder remains down and cannot be raised, contact your local distributor.

Excessively thick sheet is being used.

Use sheet within the specified range.
Alter the [UP HIGHT] setting.

Uncut sections remain.

The pressure for lowering the cutter is too low.

Increase the [ADJ-PRS OFS] value.
Increase the cutter pressure and check.

Check if [PRESS COMP.] is enabled.
