SUMMA Cutter Knife Blade Guide
General Info
The blades are used to cut various types of soft pliable materials. Standard “sign” vinyl being the most common but it is also possible to cut thicker materials using specific blades and accessories.
Compatibility

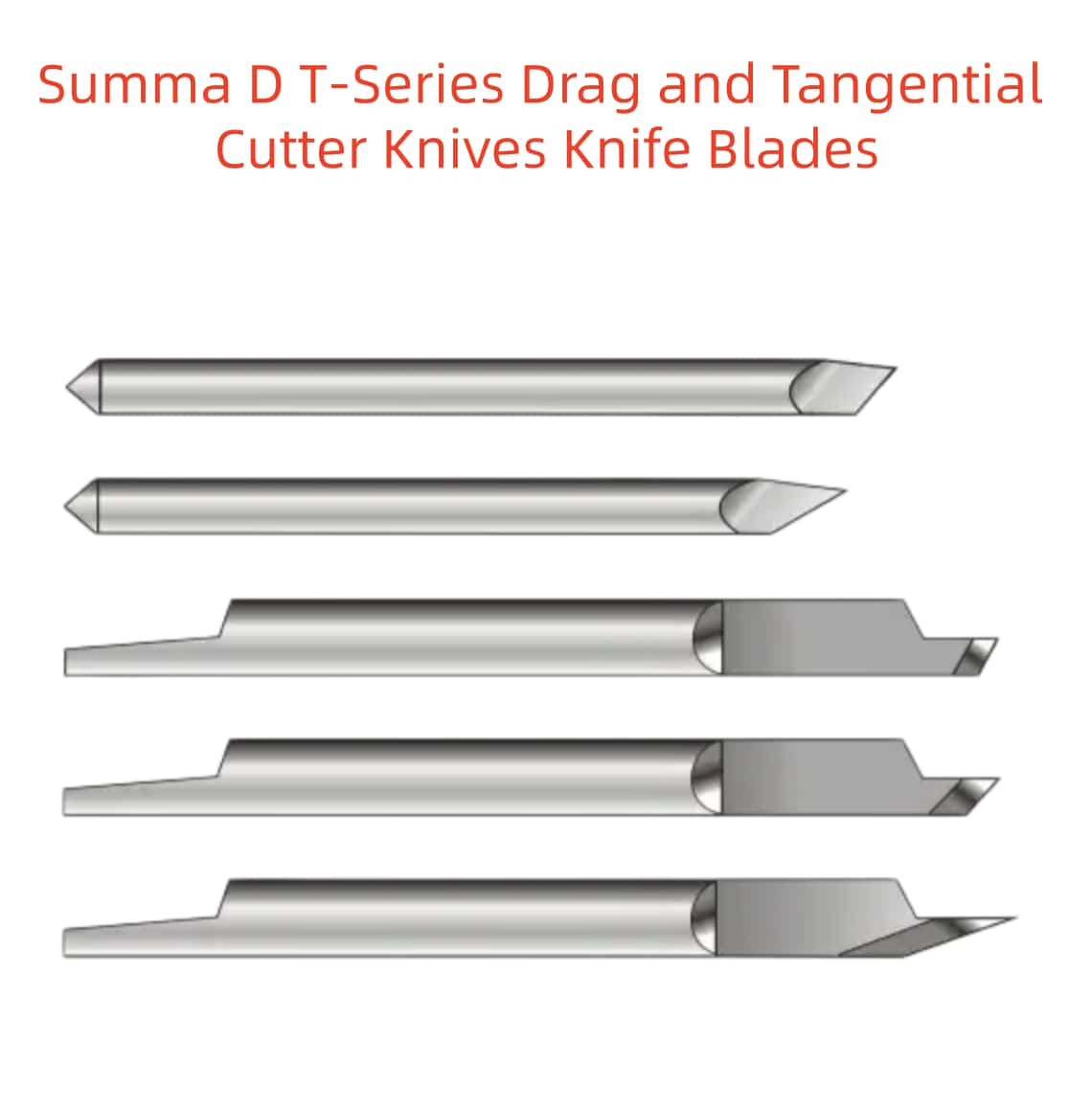

There are two styles of blades. The first are Drag knife blades which swivel around corners while staying pressed in the material. The second type is Tangential blades which lift and cut using a
motor for correct orientation.
Drag Knife Blades
Currently, Summa offers 3 Drag knife blades.
|
Standard 36° Blade |
Rhinestone 50° Blade |
Sandblast 60° Blade |
|
|
|
|
Tangential Knife Blades
Currently, Summa offers 5 Tangential knife blades.
|
390-552 |
390-550 |
|||
|
Standard 36° Blade |
Ceramic 36° Blade |
Double Edge 36° Blade |
Single Wedge 45° Blade |
Sandblast 60° Blade |
|
|
|
|
|
Blade Specifications
When picking a blade to cut your material you always want to try and use the lowest degree blade (shallowest angle). As example: while you might be able to cut vinyl with a 50° blade, you
would get better results with a 45° blade and still even better results with a 36° blade (assuming the thickness of the material did not exceed the maximum listed for that blade).
|
Cuttable material thickness in mil (thousands of an inch) |
391-224 36° Drag Blade |
50° Drag Blade |
60° Drag Bade |
390-549 36° Tang Blade |
390-552 36° Ceramic |
36° Double Edge |
45° Dual Wedge |
60° Tang Blade |
|
Maximum thickness (mil) |
10 |
10 |
30 |
10 |
10 |
10 |
39 |
47 |
|
Max Flex Thickness (mil) |
10 |
10 |
30 |
10 |
10 |
10 |
39 |
47 |
Material Applications
Material thickness is the first specification to determine which blade to use. If material thickness is unknown use this recommended chart.
|
|
D-Series |
T-Series |
||||||
|
391-224 36° Drag Blade |
50° Drag Blade |
60° Drag Bade |
390-549 36° Tang Blade |
390-552 36° Ceramic |
36° Double Edge |
45° Dual Wedge |
60° Tang Blade |
|
|
Standard Vinyl |
|
|
|
|
|
|
|
|
|
Engineering Reflective |
|
|
|
|
|
|
|
|
|
Sandblast (Monument) |
|
|
|
|
|
|
|
|
|
Rhinestone |
|
|
|
|
|
|
|
|
|
Heat Press (Apparel) |
|
|
|
|
|
|
|
|
|
Automotive (Paint Protect) |
|
|
|
|
|
|
|
|
Adjustments
Setting the physical blade depth and testing the pressure varies depending on the machine. See your user manual for specific details and menu structures. The user manuals are available on our website … https://www.china-oyea.com
|
Additional information specific per blade. |
391-224 36° Drag Blade |
50° Drag Blade |
60° Drag Bade |
390-549 36° Tang Blade |
390-552 36° Ceramic |
36° Double Edge |
45° Dual Wedge |
60° Tang Blade |
|
Drag Knife Holder (Black) |
|
|
|
|
|
|
|
|
|
Drag Knife Holder (Gold) |
|
|
|
|
|
|
|
|
|
Tangential Knife Holder |
|
|
|
|
|
|
|
|
|
Tang Nose Piece (Silver) |
|
|
|
|
|
|
|
|
|
Tang Nose Piece (Black) |
|
|
|
|
|
|
|
|
|
Knife Offset |
0.43 |
0.50 |
0.90 |
___ |
___ |
___ |
___ |
___ |
|
Overcut |
0.1 |
0.5 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
|
Needs Knife Calibration |
No |
No |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Knife Pressure |
Varies by material type and thickness. See manual on how to adjust the blade depth and pressure. |
|||||||
|
Cutting Speed (Velocity) |
Varies by material type and thickness. If the material is thicker or thinner then standard vinyl, slow down the Velocity. |
|||||||
Warranty
Blades are not covered under the warranty of the machines. They are a consumable and both their functionality and usable life depend on the user, materials, and settings.
Maintenance
Apart of the obvious maintenance (e.g. keeping the tool clean), no special treatments are required.
