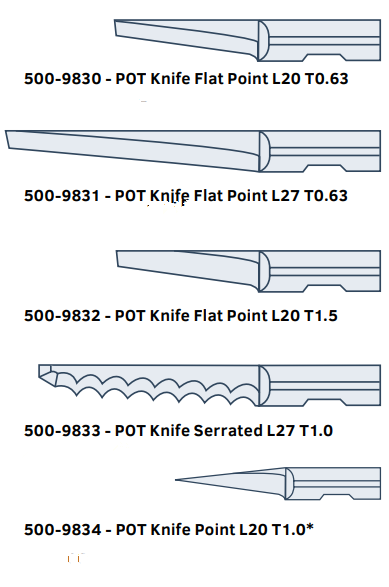

500-9830: POT Knife Flat Point L20 T0.63
General use for materials up to 18mm thick
Typical material: honeycomb board, extruded polystyreen, insulation, rubber (lower speed)
Typical speed: 200mm/sec
500-9831: POT Knife Flat Point L27 T0.63
General use for materials between 18-25mm
Typical material: honeycomb board
Typical speed: 100mm/sec
500-9832: POT Knife Flat Point L20 T1.5
More sturdy knife (thickness of the blade is 1.5mm vs 0.63mm)
Material up to 18mm thick
Typical material: Corrugated plastic / Polycarbonate, Twinwall plastic
Typical speed: 150mm/sec
500-9833: POT knife Serrated L27 T1.0
Serrated knife
Material up to 25mm thick
Typical material: Soft foams
Low speed <50mm/sec
500-9834: POT Knife Point L20 T1.0
This knife penetrates deep into the mat/conveyor. (An extra protection mat is recommended)
Can cut smaller details (smaller curves) than a standard pot knife (500-9830)
Typical material: rubber
This knife can cut ACP - Aluminium composite panels, but the edge quality is ribbed
