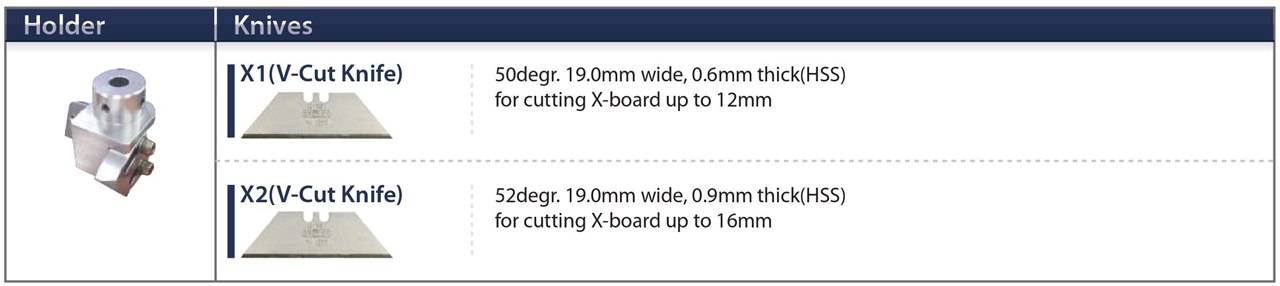

XVT (X-Board V-Cut Tool) x1 x2
** Since the tool length of each cutter model is different, the tools for X5 and for X7(=X9) cannot be cross-used.
XVT is a tool for making V-notching cuts on triple wall corrugated or sandwich boards,
and for folding the slanted cutting edges after cutting at the required angle.
There are three types of holders used for this tool, and the angles are as follows.
1. 90° Holder
2. 120° Holder

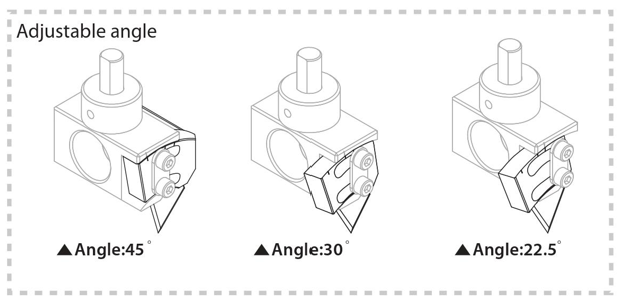

3. Multi Angle holder ( 22.5° , 30° , 45° ): 3 types of angles adjustable

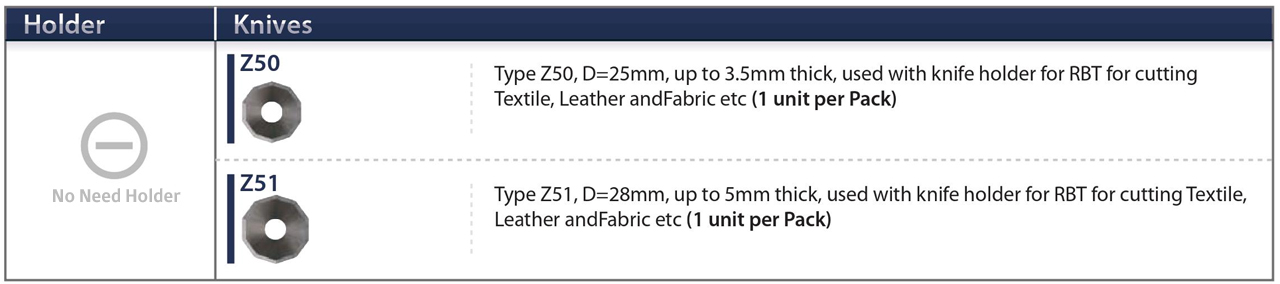

RBT (Rotating Blade Tool) z50 z51
** Since the tool length of each cutter model is different, the tools for X5 and for X7(=X9) cannot be cross-used.
RBT is another tool that uses a motor just like the RKT.
RKT cuts the material by high-speed vertical movement, but RBT cuts by rotating the blade at high speed.
It is mainly used for fabric, leather or glass fiber materials.
Dyss Knife Blade

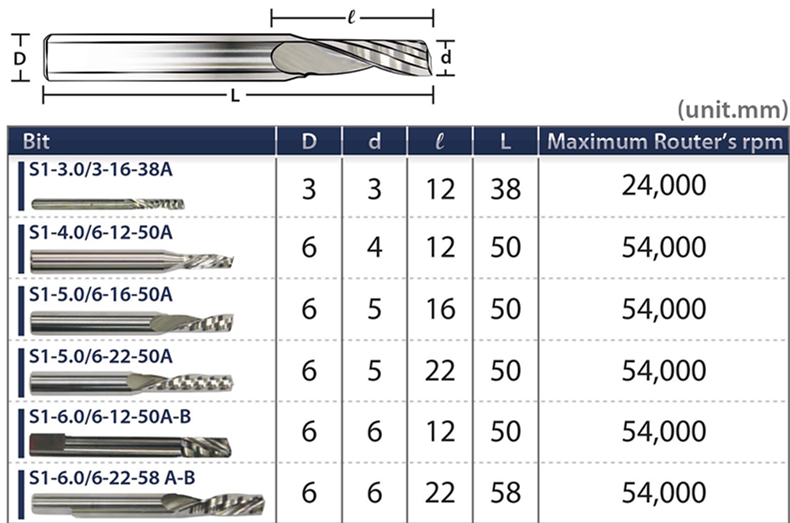

ROUTER
** Only available for X7 & X9 series.
Router is mainly used for cutting, drilling, milling, grinding, and engraving of acrylic, wood, and aluminum panels.
The maximum speed is 60,000rpm, and the maximum power is 1,050w.
DYSS' cutting machine's accurate movement and powerful router can provide the best quality customer wants.
