JWEI Knives Knife Blades for CNC Digital Cutter Tables
There is a wide range of knives used in digital cutting on Jingwei tables. They differ in their type, shape, and depth of cut for certain materials. As mentioned above, since cutting and material processing methods are standard, some knives can be replaced by knives from other manufacturers and vice versa. Please email us for quotation. Please list the specific blade model and quantity. Most common blades are in stock and can be shipped quickly.

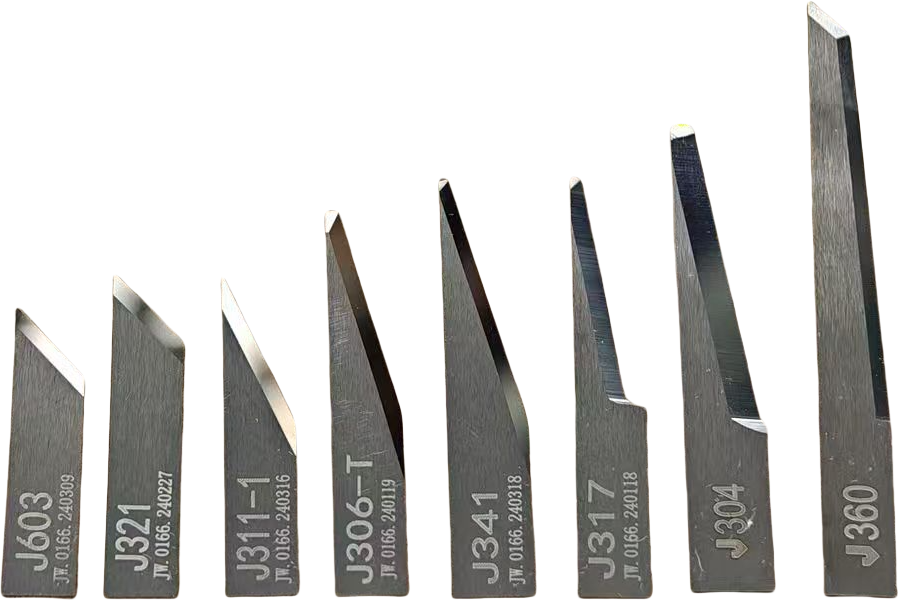

In the table below you will find an overview of Jingwei cutting table knives and tools.
|
Name, Knife type |
Dimensions |
Cutting angle / point angle |
Max Cutting Depth |
|
Jwei J301 Kiss-cut |
18.5x3x3 |
Angle 35°/ 55° |
1mm |
|
Jwei J303 Oscillating |
38x6.35x0.63 |
Angle 80°/10° |
≤ 23mm |
|
Jwei J306 Oscillating |
30*5.5*0.63 |
Angle 74°/16° Flat Top |
≤ 13mm |
|
Jwei J307 Oscillating |
30*5.5*1 |
Angle 74°/16° Flat Top |
≤ 13mm |
|
Jwei J309 Oscillating |
32x5.5x0.63 |
Angle 74°/16° Flat Top |
≤ 17mm |
|
Jwei J311 Oscillating |
25*5.5*0.63 |
Angle 64° / 26° |
≤ 10mm |
|
Jwei J312 Oscillating |
27x5.5x1 |
Angle 64° / 26° |
≤ 10mm |
|
Jwei J314 Oscillating |
30x6.35x1 |
Angle 64° / 26° |
≤ 12.5mm |
|
Jwei J315 Oscillating Knife |
28x6.35x0.63 |
Angle 64° / 26° Flat-top |
≤ 9mm |
|
Jwei J316 Oscillating Knife |
28*6.35*1 |
Angle 64° / 26° Flat-top |
≤ 9mm |
|
Jwei J317 Oscillating Knife |
33x5.5x0.63 |
Angle 80° / 10° |
≤ 14mm |
|
Jwei J319 Oscillating Knife |
25x6.35x0x63 |
Angle 45°/45° |
≤ 6mm |
|
Jwei J320 Oscillating Knife |
35x6.35x1 |
Angle 45°/45° |
≤ 6mm |
|
Jwei J321 Oscillating Knife |
30x5.5x0x63 |
Angle 45°/45° |
≤ 5mm |
|
Jwei J325 Oscillating Knife |
32x5.5x1 |
Angle 16°/ 74° |
≤ 17mm |
|
Jwei J327 Long Knife Blade |
50*6.35*1 |
Angle 84° / 6° |
≤ 35mm |
|
Jwei J331 Oscillating Tangential |
33x6.35x1mm |
Angle 68°/ 22°, Flat-top |
≤ 18mm |
|
Jwei J341 Oscillating Tangential |
33*6.35*0.63 |
Angle 74°/16° |
≤ 18mm |
|
Jwei J347 Long Knife Blade |
68*6.35*1 |
Angle 85° / 5° |
≤ 35mm |
|
Jwei J353 Drag Knife 60° |
25x8x1.5mm |
Angle 60°/ 30° |
≤ 5mm |
|
Jwei J354 Drag Knife 45° |
50x6x1.5mm |
Angle 45°/45° |
≤ 20mm |
|
Jwei J373 Rotary decagonal |
Ø28x0.63mm, hole Ø 8mm |
- |
≤ 4mm |
|
Jwei J374 Rotary decagonal |
Ø32x0.63, hole Ø 8mm |
- |
≤ 5mm |
|
Jwei J375 Rotary blade |
Ø25x0.63, hole Ø 8mm |
- |
≤ 3mm |
|
Jwei J379 Rotary decagonal |
Ø22x0.63, hole Ø 8mm |
- |
≤ 3mm |
|
Jwei J603 45° Oscillating |
22x5.5x0x63 |
Angle 45°/ 45° |
≤ 5mm |
