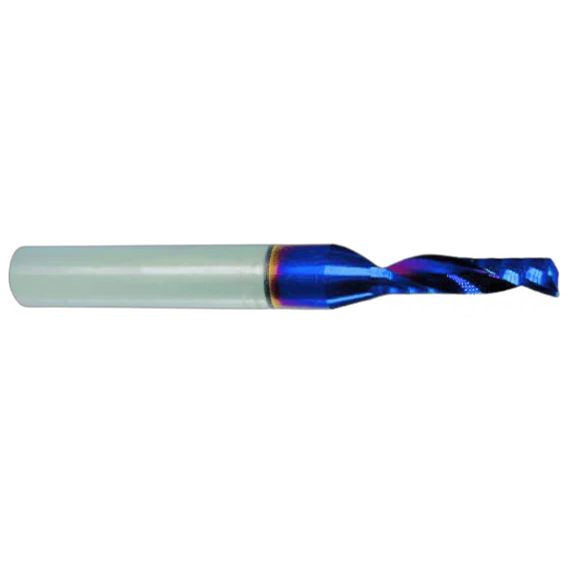

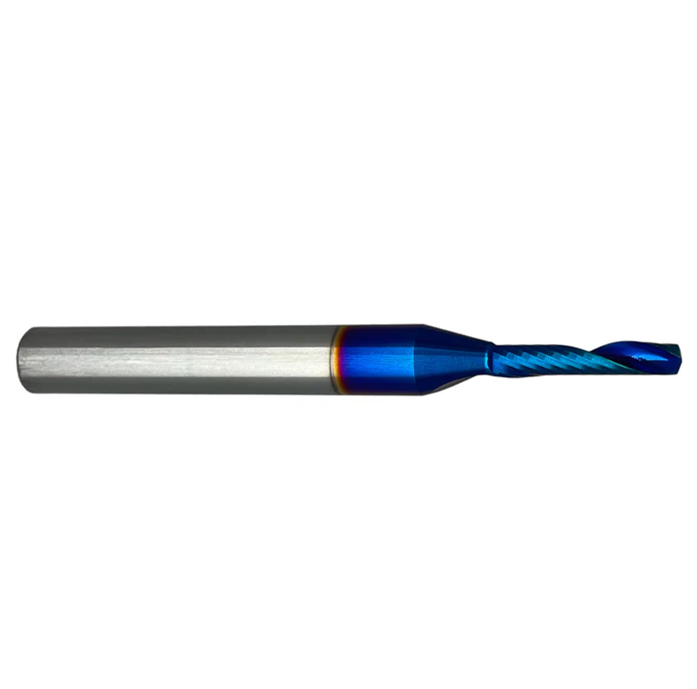

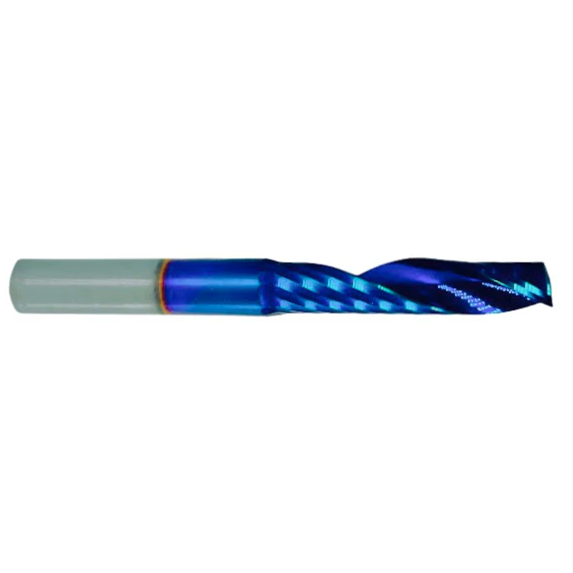

Zund Routing Systems Up Cut with nACo coating Router Bit

Zund Routing Systems Up Cut with nACo coating Router Bit

Cutting Method Route, Engrave
Recommended Materials
ACM,Maxmetal, Alumicor, Alumalite, Dibond®, Omega-Bond®, Alucobond, Expanded PVC, polypropylene, Econolite, Pro-Lite, E-Panel. 400 series is the best bit for ACM materials.
Shank Ø 6.0mm   Routing Ø 2.0mm
Max Cutting Depth   0.551in / 14.0mm
Flute Specs
Polished Single O flute - Up Cut with nACo coating, a micro-thin ceramic coating to enable the bit's cutting edge to retain crucial sharpness and lubricity.
Router Bit Material Fine Grain Carbide
Replacement For Zünd R202 5209418, Zund R207 5212253, Gerber MCT CCR202, 202, 502

Shank Ø 6.0mm Routing Ø 3.0mm
Max Cutting Depth 0.551in / 14.0mm
Flute Specs
Polished Single O flute - Up Cut with nACo coating, a micro-thin ceramic coating to enable the bit's cutting edge to retain crucial sharpness and lubricity.
Replacement For Zünd R203 5209418, Zund R208 5212028, Gerber MCT CCR203, 203, 503

Shank Ø 6.0mm Routing Ø 4.0mm
Max Cutting Depth 0.551in / 14.0mm
Flute Specs Polished Single O flute - Up-Cut with NeoGuard™
Replacement For Zünd R504 5218137 and Zünd R209 5212030, 404, R404
Compatible with Zund, Kongsberg, Colex, Summa, CWT, Cutworx, and Multicam machines

Shank Ø 6.0mm Routing Ø 6.0mm
Max Cutting Depth 1.000in / 25.4mm
Flute Specs
Polished Single O flute - Up Cut with nACo coating, a micro-thin ceramic coating to enable the bit's cutting edge to retain crucial sharpness and lubricity.
Replacement For Zünd R506
