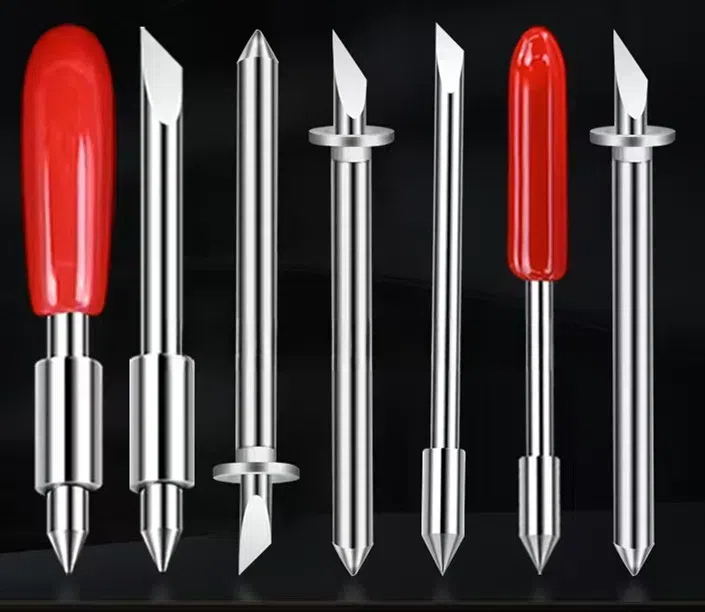

JWEI J201,J202,J203,J204,J205,J206,J208,J301 DRAG BLADE, ROUND-STOCK
The JingWei JWei drag blades, round-stock, are a series of cutting machine knife blades designed for various materials such as card paper, Kraft paper, and flexible PVC. Here is a summary of the specifications for each model:
Specifications by Model
J201:
Knife Height: 25 mm
Thickness: Φ1.95 / Φ1.4 mm
Max. Cutting Depth: 1.2 mm
Angle: 30°.
J202:
Knife Height: 25 mm
Thickness: Φ1.95 / Φ1.4 mm
Max. Cutting Depth: 0.7 mm
Angle: 45°.
J203:
Knife Height: 25 mm
Thickness: Φ1.95 mm
Max. Cutting Depth: 0.7 mm
Angle: 45°.
J204:
Knife Height: 25 mm
Thickness: Φ1.95 mm
Max. Cutting Depth: 1.3 mm
Angle: 30°.
J205:
Knife Height: 25 mm
Thickness: Φ1.95 mm
Max. Cutting Depth: 1.1 mm
Angle: 60°.
J206:
Knife Height: 19 mm
Thickness: 0.9 mm
Max. Cutting Depth: 0.3 mm
Angle: 45°.
J208:
Knife Height: 19 mm
Thickness: 1.5 mm
Max. Cutting Depth: 0.5 mm
Angle: 45°.
J301:
Knife Height: 19 mm
Thickness: 3.00 mm
Max. Cutting Depth: 1.0 mm
Angle: 50°.
These blades are used in cutting machines for various applications, including kiss cutting and drag cutting of materials like paper and PVC. The specific angle and cutting depth of each blade determine its suitability for different materials and cutting tasks.
