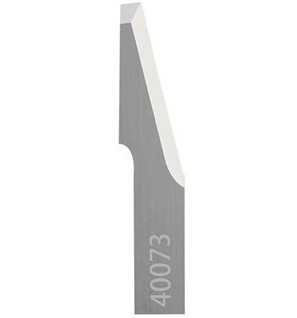

ATOM 01040073 Oscillating Knife:
This blade features a 5°-15° angle and is suitable for cutting aramid fibers, carbon fibers, corrugated cardboard, felt, foam board, leather, and polyester fabric. It has a thickness of 0.63 mm, a height of 28.00 mm, and a maximum cutting depth of 16.00 mm.
ATOM 01046251 Flashcut HV 1600 Oscillating Knife Blade:
ANGLE 5°-5°
KNIFE HEIGHT 33,00 mm
KNIFE WIDTH 5,2 mm
THICKNESS 0,64 mm
MAX. CUTTING DEPTH 12,00 mm
KNIFE TYPE Flat, Oscillating blade
KNIFE/BLADE MOUNTING
płaski 0,64 mm
ATOM 01033856 Oscillating Knife:
Cutting depth approx. 12 mm
no. 01033856 / (HV1400)
Atom Blade 01030773
Type: Oscillating blade.
Composition: Tungsten Carbide - HM (Hard Metal).
Thickness: 0.63 mm.
Tools: Compatible with electric and pneumatic oscillating tools.
Materials: Ideal for cutting very rigid materials like leather, asbestos-free reinforced graphite, with thicknesses up to 10 mm, and suitable for small radius cuts.
Atom Blade 01039999
Type: Oscillating blade.
Composition: Tungsten carbide or customized.
Thickness: 0.63 mm.
Total Length: 28 mm.
Max Cutting Depth: 12 mm.
Materials: Suitable for cutting foam board, foam, rubber, and a wide range of synthetic materials. It provides high-precision cutting and is durable.
ATOM 01047659 Oscillating Knife:
Cutting depth approx. 17 mm
no. 01047659 / (HV1600)
Description: High speed cutting knife.
Thickness: 0,63 mm.
Tools: Electric Oscillating Tool and Pneumatic Oscillating Tool.
Composition: Tungsten Carbide - HM - Hard Metal.
Materials: Very rigid materials, Thickness leather (soles up to 3-4 mm, belts, etc.), asbestos-free, reinforced graphite, Thicknesses up to 10 mm, ideal for small radii.
For optimal performance and safety, it's essential to select the appropriate blade based on the material and cutting requirements of your specific application. Consulting with ATOM's official documentation or customer SHENGZHEN OYEA
