AOL-1625PAS Specifications
Working Area: 2500×1600mmn Machine Size: 3600x2400x1200mm
Rated Power: 11KW Cutting Speed: 0-1400mm/s Cutting Thickness: ≤50mm
Cutting Materials: Corrugated cardboard, honeycomb cardboard, kraft paper, stickers, labels, PP paper, flags, inkjet cloth, light boxes, KT boards, etc.
Tools: Oscillating knife, vibrating knife, semi-cutting knife, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife.
Safety Device: Four corners emergency stop, anti-collision safety device using infrared induction.
Transmission System: X/Y axis divided into rack or belt options.
Support File Format: AI, PLT, DXF, PDF, PCE, XML17.
AOL-1070PAS Specifications
Working Area: 1000×700mm Cutting Speed: 200-1300mm/s
Cutting Thickness: Up to 20mm depending on material density
Cutting Materials: PVC board, PP board, white card paper, cardboards, paper, PVC, film, sticker, etc.
Tools: Oscillating knife cutting tool, drag knife cutting tool, crease wheel, cut-through-knife, marking pen, and CCD camera.
Safety Device: Infrared anti-collision technology.
Transmission System: Imported digital servo motor, linear guide, belt.
Instruction System: HP-GL compatible format3.
Usage Differences
Material Handling:
AOL-1625PAS: Suitable for thicker and more diverse materials like corrugated cardboard, honeycomb cardboard, and various packaging materials. It can handle materials up to 50mm thick.
AOL-1070PAS: Ideal for thinner materials such as PVC boards, cardboards, and papers, with a maximum cutting depth of 20mm.
Cutting Tools:
AOL-1625PAS: Offers a wider range of cutting tools, including vibrating knives and high power active round knives, which are beneficial for complex cuts and thicker materials.
AOL-1070PAS: Equipped with oscillating knife, drag knife, crease wheel, and marking pen, suitable for precise cuts and creasing in thinner materials.
Working Area and Size:
AOL-1625PAS: Larger working area (2500×1600mm) and machine size, making it suitable for industrial-scale operations.
AOL-1070PAS: Smaller working area (1000×700mm), more compact and suitable for smaller-scale operations or precise cutting tasks.
Safety Features:
Both machines use infrared sensors for safety, but the AOL-1625PAS has additional emergency stops at four corners.

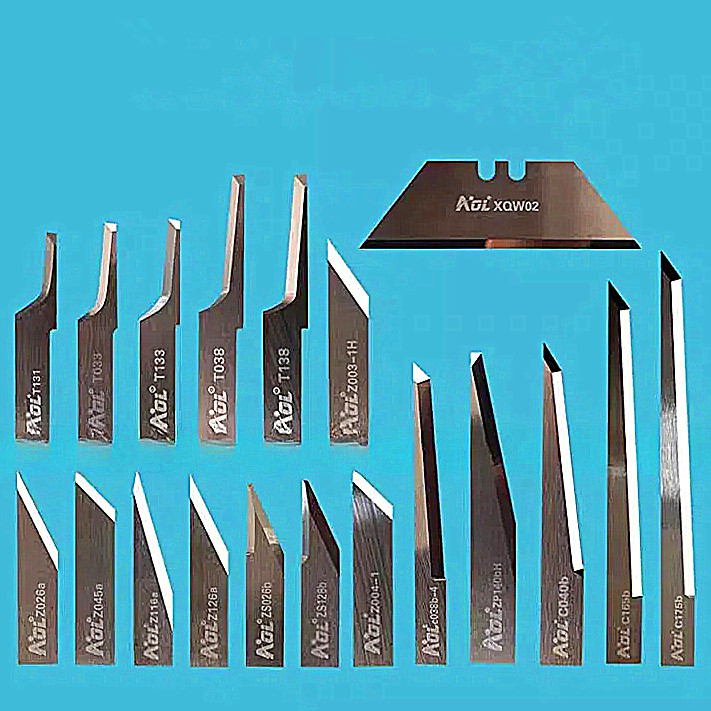

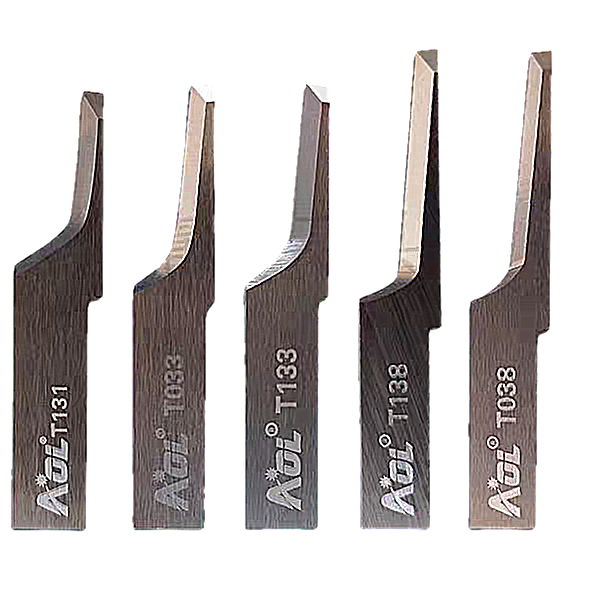

When selecting blades for these machines, consider the following:
Blade Length: Should be at least 5mm longer than the material thickness to ensure efficient cutting.
Blade Angle: Different angles suit different materials. For example, 0° blades are ideal for low-density materials, while steeper angles (like 30° or 35°) are better for denser materials.
Blade Rigidity: Thicker blades offer more rigidity, essential for cutting harder material.
