Choosing the BLD-DF570 Blade

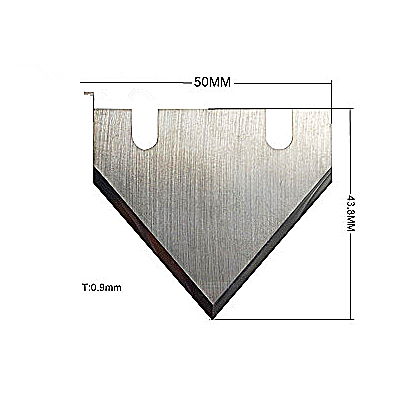

Specifications
- Length: 50 mm
- Width: 44 mm
- Max. Cutting Thickness: 16 mm (5/8")
- Material: Special Tungsten Carbide alloy for extended durability
- Thickness: 0.9 mm (.035")
Applications
- Materials: Fluted core boards, triple wall corrugated, and similar materials.
- Cutting Method: V-notch cutting for creating folding lines or through-cuts with a slanted edge.
Compatibility
- Tool Requirements: VI45-16 and VI30-16 V-Notch tool inserts on XL/XN/X adapters.
- Machine Compatibility: Kongsberg PCS table with appropriate tool configurations.
Using the BLD-DF570 Blade
Installation
1. Ensure Compatibility: Verify that your Kongsberg cutting table supports the VI45-16 or VI30-16 tool inserts.
2Mounting: Use the appropriate adapter to securely mount the blade in your tool head.
Operation
1. Material Preparation: Ensure the material is properly aligned and secured on the cutting table.
2. Cutting Parameters: Adjust the cutting depth and speed according to the material thickness and type.
3. Safety Precautions: Always use safety features like a safety foot for safe mounting and operation.
Maintenance
1.Blade Inspection: Regularly inspect the blade for wear and damage.
2. Sharpening or Replacement: Sharpen or replace the blade as needed to maintain cutting quality.
Alternatives
If you need a replacement or alternative, consider the Shenzhen OYEA, which is designed to replace the BLD-DF570 and offers similar functionality.
By following these guidelines, you can effectively choose and use the Esko Kongsberg BLD-DF570 V-Cut Knife Blade for your cutting needs.
