Materials Suitable for Summa T Series Blades
1. Vinyl (standard & reflective)
- Self-adhesive vinyl
- Heat transfer vinyl (HTV)
- Reflective films (e.g., 3M, Oralite)
2. Sandblast Masking Materials
- Rubber stencil material
- Sandblast resist films (for stone/wood carving)
3. Flock and Flex Films
- Thicker heat press materials used in garment decoration
4. Cardstock and Paper
- Heavy paper stocks
- Cardboard (lightweight)
5. Mylar and Polyester Films
- For stencils and templates
6.Magnetic Sheet (thin)
- Only very thin magnetic materials; cutting thicker types might require multiple passes or pre-treatment
7. Reflective and Prismatic Films
- Used for road signs and safety markings
8. Polycarbonate and Thin Plastics
- Thin sheets up to a certain thickness (check blade capacity and force settings)
9. Fabrics (with stabilizer)
- When backed with adhesive or stabilizer sheets, some textiles can be cut
10. Masking Films and Paint Mask
- Oramask, GerberMask, and similar stencil films

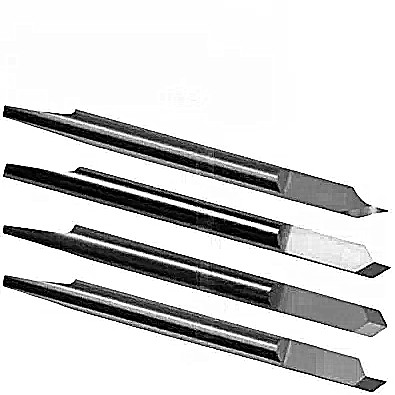

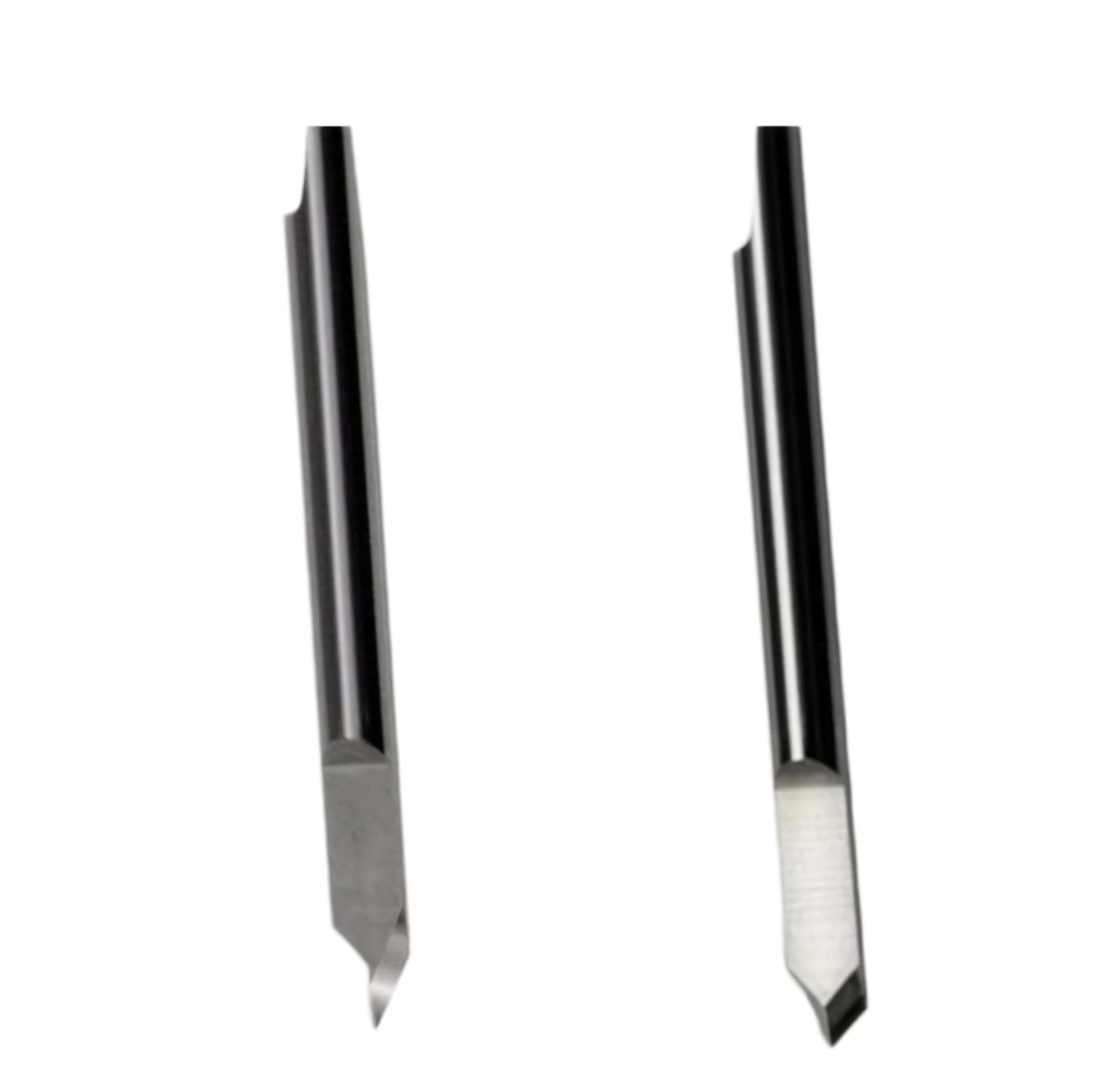

The Summa T series blades are versatile and can be used to cut a variety of materials depending on the blade angle and type. Here's a breakdown of suitable materials for different blade angles:
- 36° Blade: Ideal for cutting standard vinyl, thin materials, masking films, magnetic foil, self-adhesive foil, reflective foil, and window foil. It is best suited for materials up to 10 mil (0.25 mm) thick.
- 45° Blade: Suitable for standard vinyl and slightly thicker materials than the 36° blade. It provides a good balance between cutting force and precision.
- 55° Blade: Designed for thicker materials, this blade is typically used with drag knife cutters and is suitable for materials up to 0.8 mm (0.03") thick, such as those used in sandblast applications.
- 60° Blade: Ideal for cutting thicker and tougher materials like sandblast stencils, textiles, felt, and cardboard.
In general, the Summa T series can handle a range of materials from thin vinyl films to thicker, more robust materials like cardboard, depending on the blade selected. Always ensure the blade is compatible with your specific Summa model and adjust settings as needed for optimal performance.
